EQUALIZER LOAD HELPER KIT

Name: EQUALIZER LOAD HELPER KIT
Brand: AFTERMARKET
SKU: EQ1360
Price: 84 GBP
Availability: InStock

Order By 2PM (Mon - Fri) For Same Day Dispatch

Availability:In stock

Part Code

EQ1360

£84.00 £70.00

Vehicle Compatibility

Toyota Hilux Parts

Toyota Hilux Pickup MK5 KDN165 2.5TD D4D (8/2001-7/2005)
Toyota Hilux Pickup MK6 KUN25 2.5TD D4D (7/2005-2016)
Toyota Hilux Pickup MK6 KUN26 3.0TD D4D (10/2006-2016)
Toyota Hilux Pickup MK3 LN105 2.4D (8/1988-7/1997)
Toyota Hilux Pickup MK4 LN165 2.4TD (8/1997-7/2001)

Details

EQUALIZER KIT

Part Number	Year	Make/Model
EQ1360	1987-2006	FORD RANGER/MAZDA B2500 (4X4)
	2006-2011	FORD RANGER/MAZDA BT50 (4X4)
	2005-2011	FORD RANGER/MAZDA BT50 (2X4)
	11/1983-11/1997	TOYOTA HILUX LN105/LN106
	1988-1997	TOYOTA HILUX 4 RUNNER
	1997-2005	TOYOT HILUX LN165/KDN165
	2005-ON	TOYOTA HILUX (2X4)
	3/2005-ON	TOYOTA HILUX KUN25/KUN26

DIFFERENCES BETWEEN THE LOAD PLUS & THE EQUALIZER

LOAD PLUS/LOAD HOG

Load plus is connected at both end of the leaf pack with u-bolts this:

-traps the spring which results in up to 20% loss of articulation/travel.

- makes the load plus only comfortable when weight is applied, and very uncomfortable when weight is unloaded.

- results in no minimum or maximum wind recommendations or markings.

-means the load plus can be overtightened by customer to cause main pack overstress and breakage.

-means decreasing the load can cause load plus to be ineffective and also cause main pack to break.

- means the stress on the load plus will cause the u-bolts to break, which can dislodge from the vehicle and cause serious damage or injury to other vehicles and pedestrians.

THE EQUALIZER

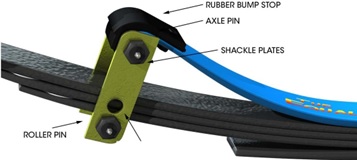

Equalizer is secured to the leaf pack via a roller swing shackle meaning:

- the spring is not trapped and is able to articulate freely.

-the equalizer is comfortable empty or fully loaded.as the roller swing shackle acts as a shock absorber.

- the swing shackles is pre-loaded to greatly reduce body roll.

- two adjustment settings eliminate customer tampering or overstressing of the leaf pack.

- two adjustment settings cater to all needs: lower hole for light to medium loads and upper hole for heavy loads.

- even if the system is drastically over stressed, breakage of the equalizer will result in all parts being safely secured to the vehicle. ensuring no other vehicles or pedestrians are injured.

The roller swing shackle ensures comfort regardless of load as the spring is unrestricted and able to articulate through it's full range of motions.

Two easy adjustable pre-load settings ensure the equalizer operates at optimal performance, regardless of settings, with no possibility of over stressing or under stressing the system.

The lower setting for light to medium loads.

The upper setting for heavy /constant loads.

More Information

Specifications
Part Code	EQ1360
Make	AFTERMARKET
Shipping Type	Parcels (£7)
Model	Multi-Brands
