Isuzu D-Max TFS54 2.5TD 4JA1 (1992-07/2006) EQUALIZER LOAD HELPER KIT

Name: EQUALIZER LOAD HELPER KIT
Brand: AFTERMARKET
SKU: EQ1360S
Price: 84 GBP
Availability: InStock

Order By 2PM (Mon - Fri) For Same Day Dispatch

Availability:In stock

Part Code

EQ1360S

£84.00 £70.00

Vehicle Compatibility

Isuzu D-Max/Rodeo Parts

Isuzu D-Max TFS54 2.5TD 4JA1 (1992-07/2006)
Isuzu D-Max TFS77 3.0TD 4JH1 (07/2003-08/2006)
Isuzu D-Max TFS86 2.5TD 4JK1 (2006-05/2012)

Nissan Navara Pick Up D22 2.5TD (1998->)

Nissan Navara Pick Up D40 2.5TD (05/2005-01/2010)

Nissan Navara Pick Up D40 3.0 DCi V6 diesel 230hp(01/2010->)

Nissan Navara Pick Up D40 2.5 DCi 190hp (01/2010->)

Isuzu D-Max TFS85 3.0TD 4JJ1 (2005-07/2012)

Details

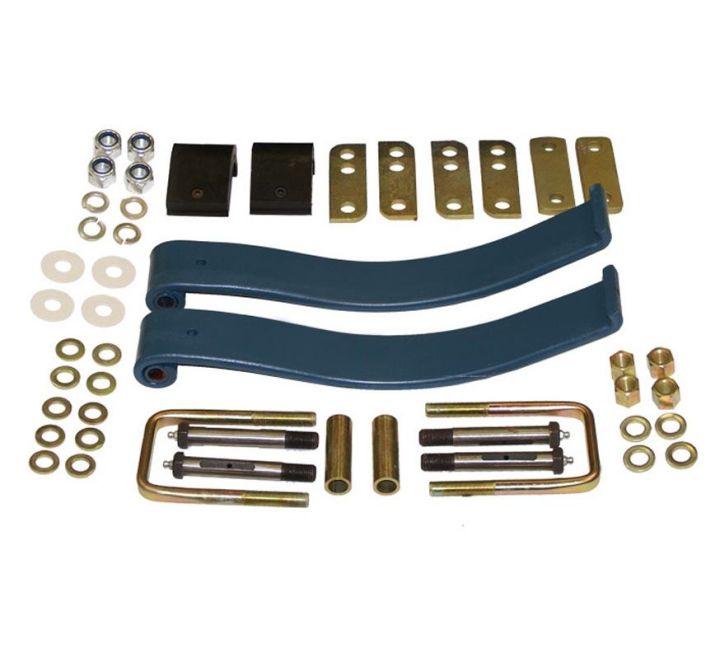

EQUALIZER KIT

Part Number	Year	Make/Model
EQ1360S	2012-ON	FORD RANGER/MAZDA BT50
	1997-ON	NISSAN NAVARA D22
	2005-ON	NISSAN NAVARA D40
	1988-3/2003	ISUZU TFS 54
	3/2003-2012	ISUZU TFS 77/84/86 (D-MAX)

DIFFERENCES BETWEEN THE LOAD PLUS & THE EQUALIZER

LOAD PLUS/LOAD HOG

Load plus is connected at both end of the leaf pack with u-bolts this:

-traps the spring which results in up to 20% loss of articulation/travel.

- makes the load plus only comfortable when weight is applied, and very uncomfortable when weight is unloaded.

- results in no minimum or maximum wind recommendations or markings.

-means the load plus can be overtightened by customer to cause main pack overstress and breakage.

-means decreasing the load can cause load plus to be ineffective and also cause main pack to break.

- means the stress on the load plus will cause the u-bolts to break, which can dislodge from the vehicle and cause serious damage or injury to other vehicles and pedestrians.

THE EQUALIZER

Equalizer is secured to the leaf pack via a roller swing shackle meaning:

- the spring is not trapped and is able to articulate freely.

-the equalizer is comfortable empty or fully loaded.as the roller swing shackle acts as a shock absorber.

- the swing shackles is pre-loaded to greatly reduce body roll.

- two adjustment settings eliminate customer tampering or overstressing of the leaf pack.

- two adjustment settings cater to all needs: lower hole for light to medium loads and upper hole for heavy loads.

- even if the system is drastically over stressed, breakage of the equalizer will result in all parts being safely secured to the vehicle. ensuring no other vehicles or pedestrians are injured.

The roller swing shackle ensures comfort regardless of load as the spring is unrestricted and able to articulate through it's full range of motions.

Two easy adjustable pre-load settings ensure the equalizer operates at optimal performance, regardless of settings, with no possibility of over stressing or under stressing the system.

The lower setting for light to medium loads.

The upper setting for heavy /constant loads.

More Information

Specifications
Part Code	EQ1360S
Make	AFTERMARKET
Shipping Type	Parcels (£7)
Model	Multi-Brands
